Brand Name : ELC
Model Number : WL1038T
Certification : CE, CCC
Place of Origin : China
MOQ : 10pcs
Price : Negotiable
Payment Terms : T/T
Supply Ability : 2000pcs per day
Delivery Time : 7-25 dyas
Packaging Details : Carton box
CPU : RK3568 Quad core cortex A55
Touch : 10-Point capacitive touch
Camera : 5MP Front Camera
NFC : Optional ,NFC 13.56MHz,ISO14443A/ISO14443B/ISO 15693/Mifare classic/Sony felica
Size : 10.1 Inch
Design : Vertical with stand
Charging interface : DC
Color : White/Black Optional
Warranty : 1 Year
Frame Material : Plastic
Scenarios : Commercial use for restaurants, hotels
RAM : 2GB
ROM : 16GB
Processor Type : Quad core
Panel Brightness : 250nits
Panel Resolution : 800*1280
USB port : Type-C
Android : Android 11
System | CPU | RK3568 Quad core cortex A55 | |
RAM | 2GB | ||
Internal memory | 16GB | ||
Operation system | Android 11 | ||
Touch screen | 10-Point capacitive touch | ||
Display | Panel | 10.1"LCD | |
Resolution | 800*1280 | ||
Display mode | Normally black | ||
Viewing angle | 85/85/85/85 (L/R/U/D) | ||
Contrast ratio | 800 | ||
Luminance | 250cd/m2 | ||
Aspect Ratio | 10:16 | ||
Network | WiFi | IEEE 802.11 a/b/g/n/ac/ax | |
Ethernet | 10M/100M/1000M | ||
Buletooth | Bluetooth 5.4 | ||
Interface | Card slot | TF,support up to 64GB | |
USB | USB for serial (TTL Level ) ,Optional USB host | ||
USB | USB host 3.0 | ||
Type-c | Support USB OTG only | ||
Power jack | DC power input | ||
Earphone | 3.5mm earphone output | ||
RJ45 | Ethernet interface | ||
Media play | Video format | MPEG-1,MPEG-2,MPEG-4,H.265,H.264,VC-1,VP8,VP9, etc.,support up to 4K | |
Audio format | MP3/WMA/AAC etc. | ||
Photo | jpeg/png | ||
NFC | Optional ,NFC 13.56MHz,ISO14443A/ISO14443B/ISO 15693/Mifare classic/Sony felica | ||
Other | Microphone | Standard single microphone , Optional dual microphone | |
Speaker | 2*2W | ||
Camera | Routine angle 5.0MP | ||
Language | Multi-language | ||
Working temp | 0--40degree | ||
Certificates | ce/fcc | ||
Accessories | Adapter | Adapter,12V/1.5A | |
User manual | yes | ||

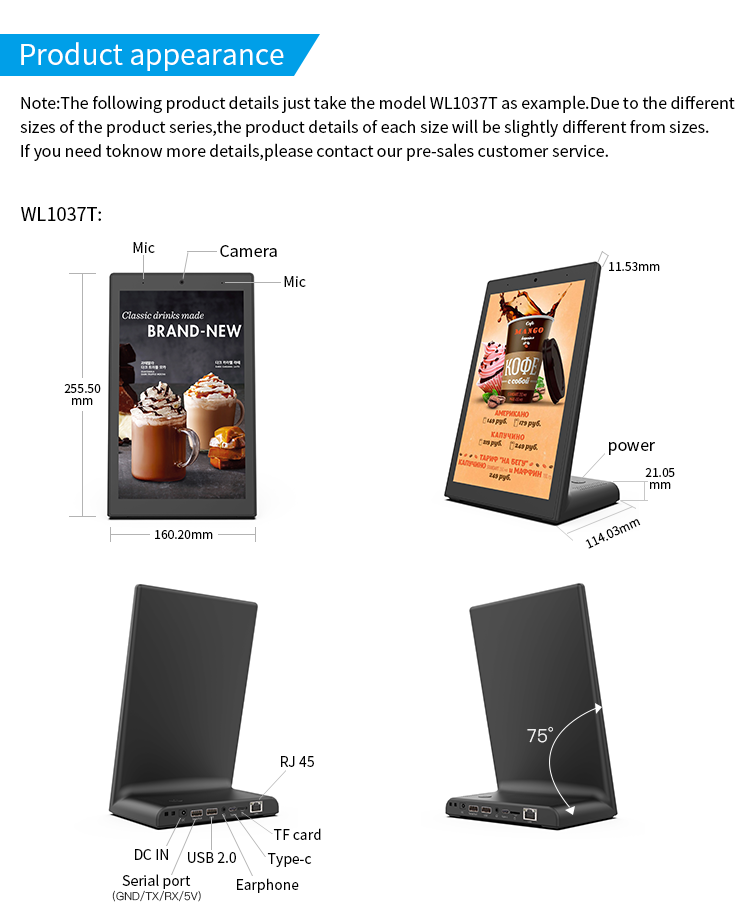

Product Drawing:
Our services:
1. Customized designs are available, OEM/ODM orders are welcome
2. 12-month warranty for our products
3. Inquiries replied within 24 working hours
4. Two R&D teams, technical support provided with a quick response
This Android L-Shaped Digital Signage is widely used for food catering and ordering in hotels, restaurants, airports cantins, etc.
![]() |
